REX® Series 1000

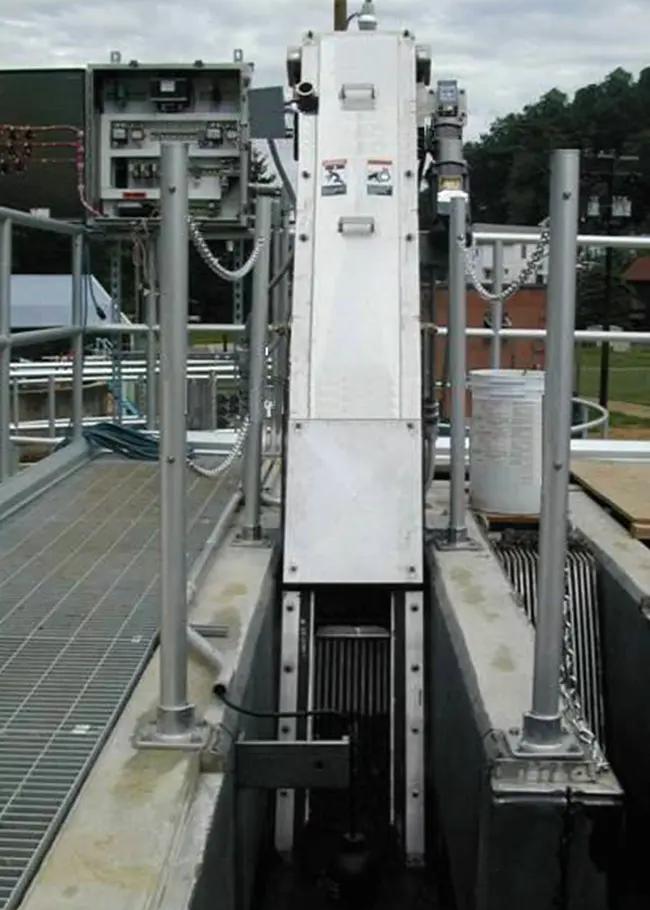

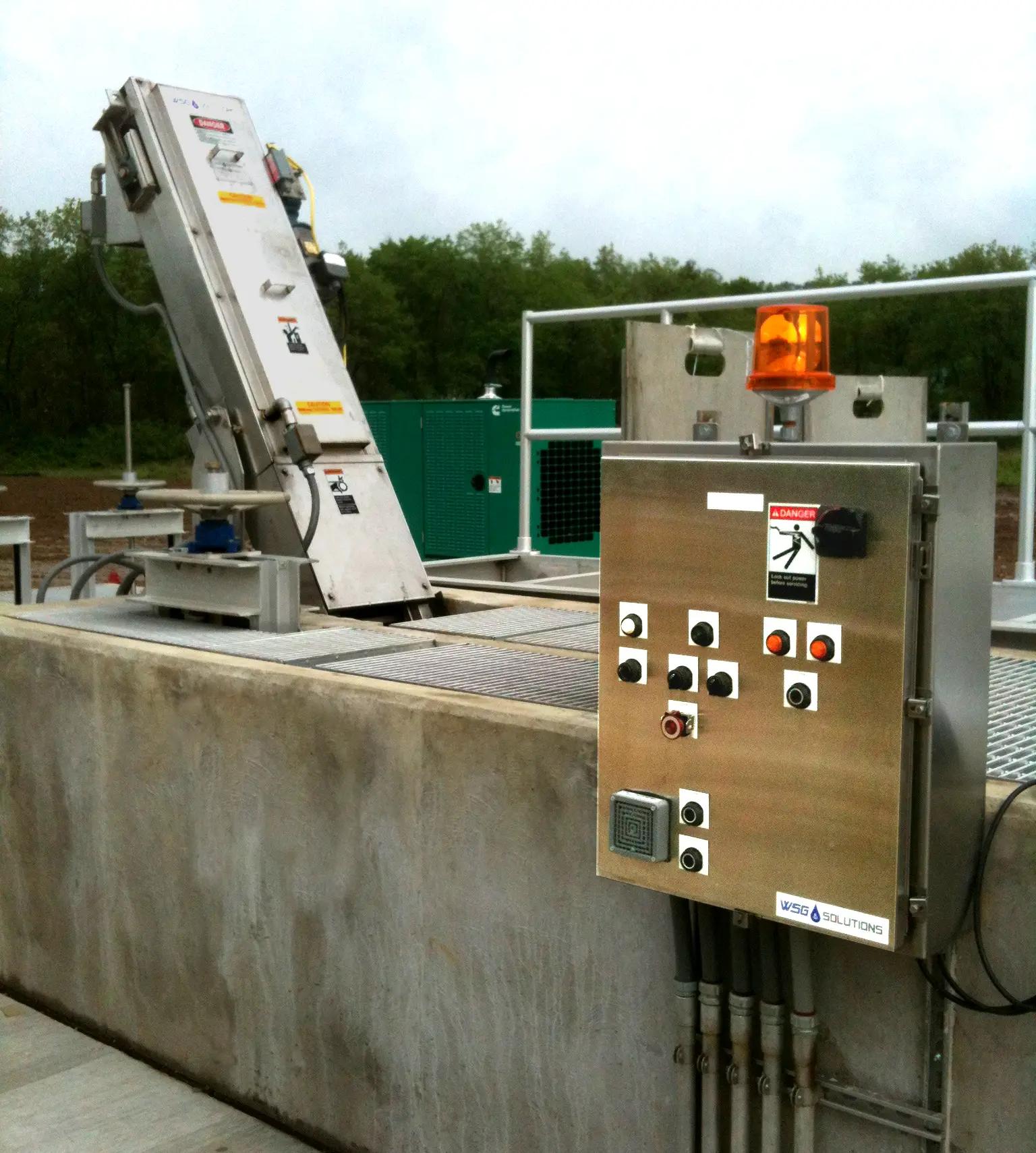

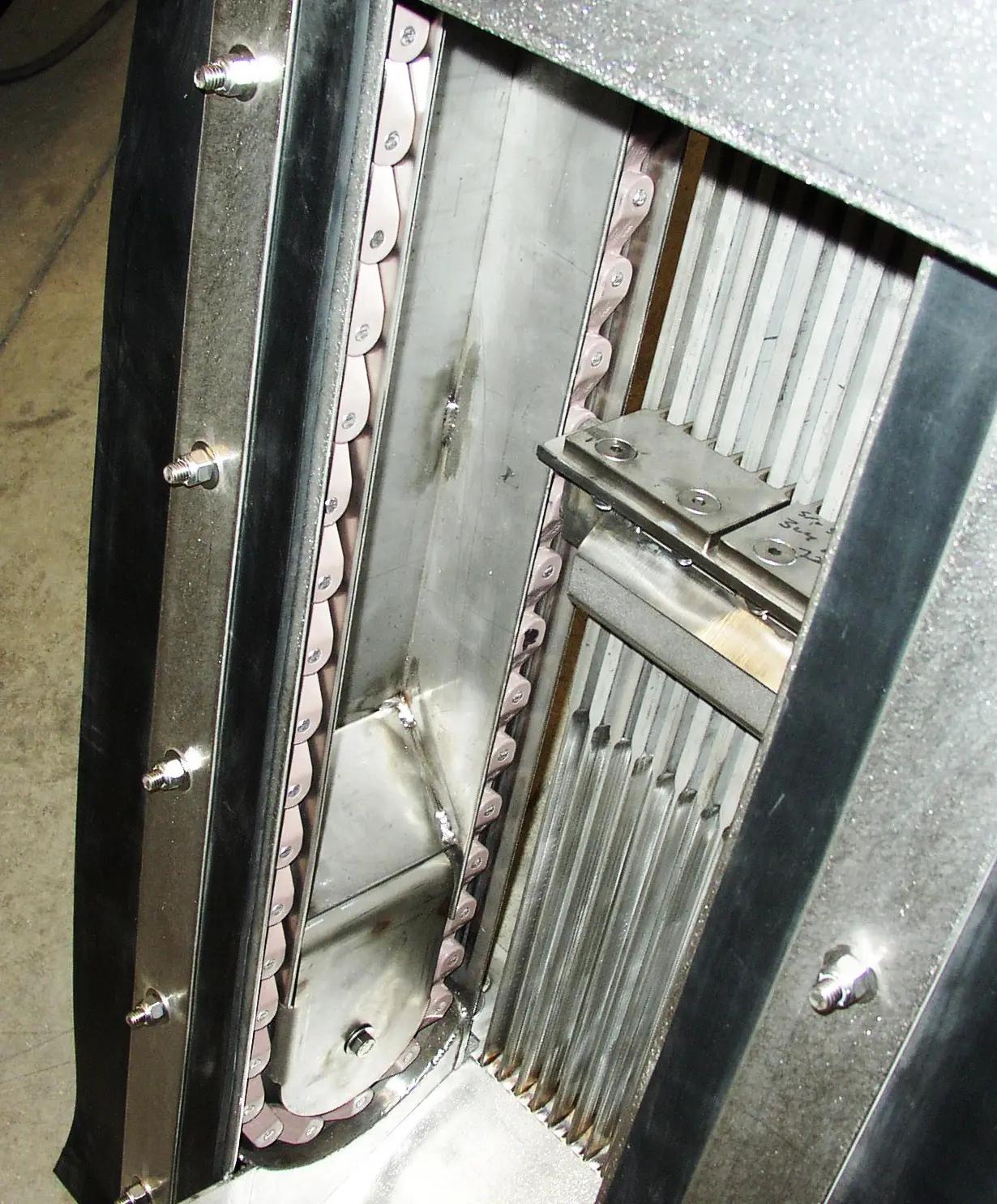

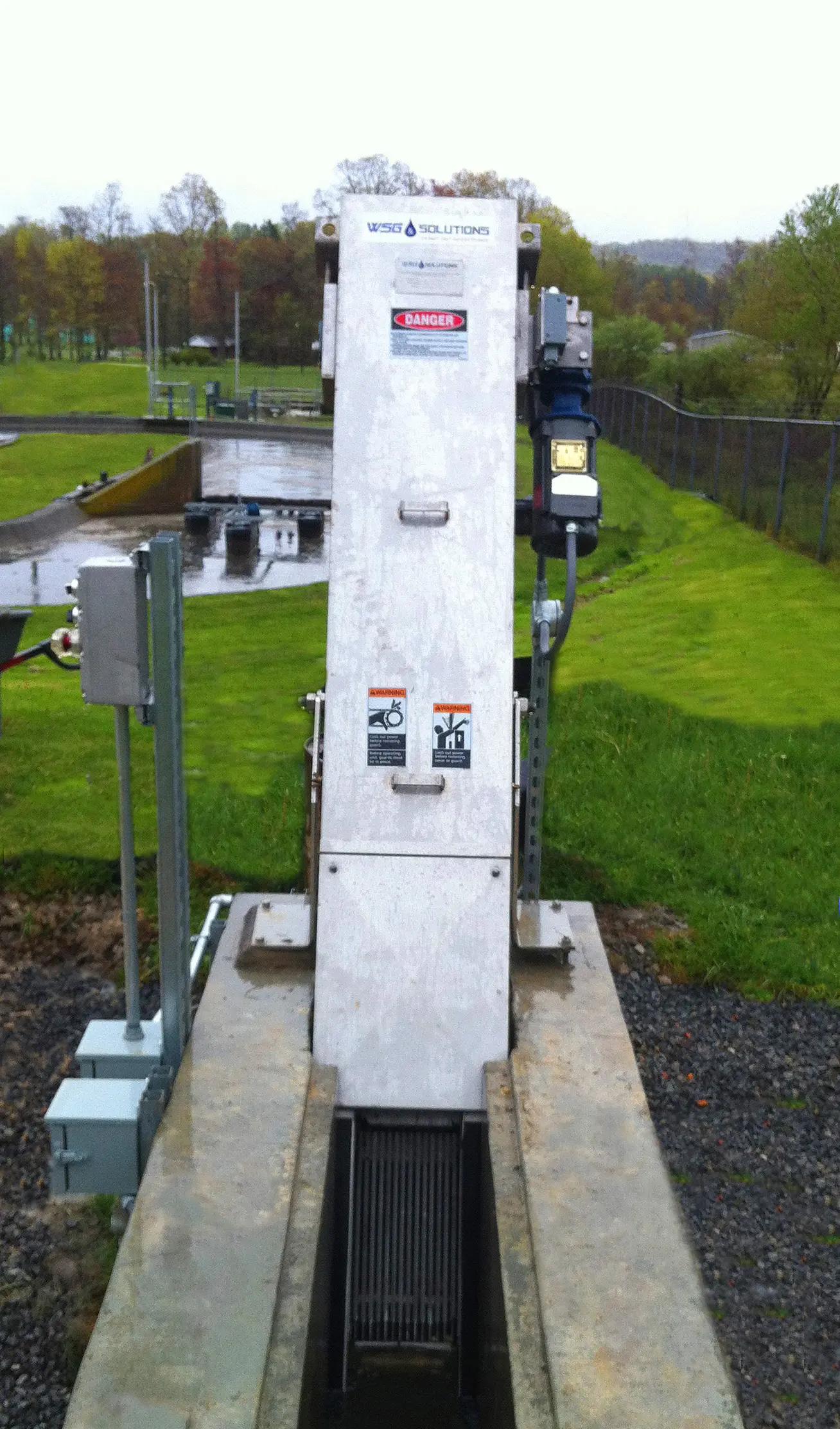

The REX® Series 1000 Bar Screen is a self-contained chain and rake type screen. The screen can be supplied with either a fixed mounting, or it can be designed to pivot out of the channel. The debris is captured by the bar rack and removed by multiple rakes from the upstream side of the screen. The screen is constructed of stainless steel.
The bar screen is designed to operate at regular intervals, 24-hours per day. A start timer initiates the cleaning cycle to remove the collected debris from the bar rack. The unit will cycle until two (2) rakes have passed the stop limit switch at which time the unit will shut down until another cycle is initiated. The off timer is adjustable to suit site requirements.
A float switch or differential control can be provided to override the timer and initiate a cleaning cycle.
Features
- Easy installation
- Stainless steel construction

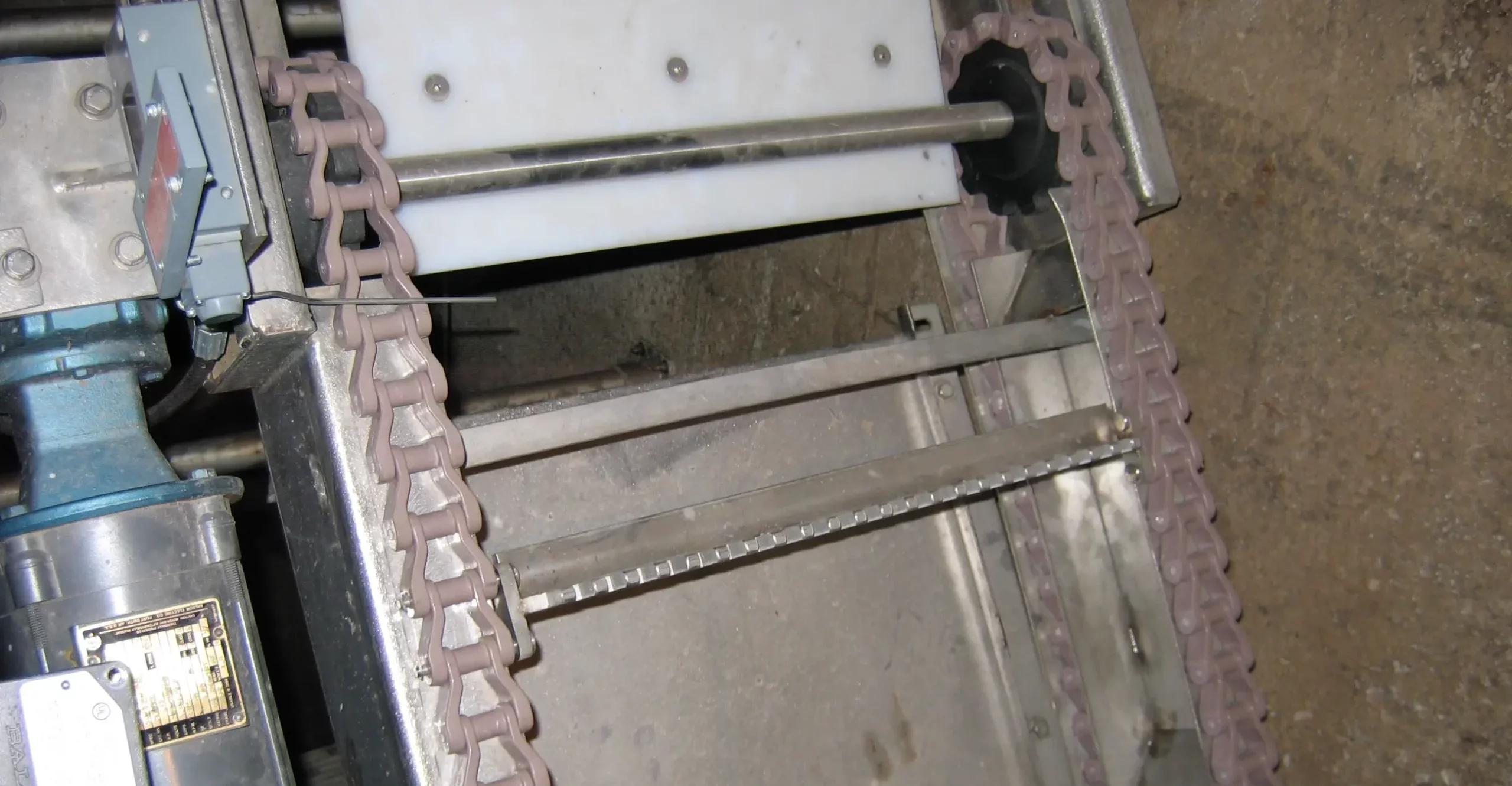

- Non-metallic chain and sprockets

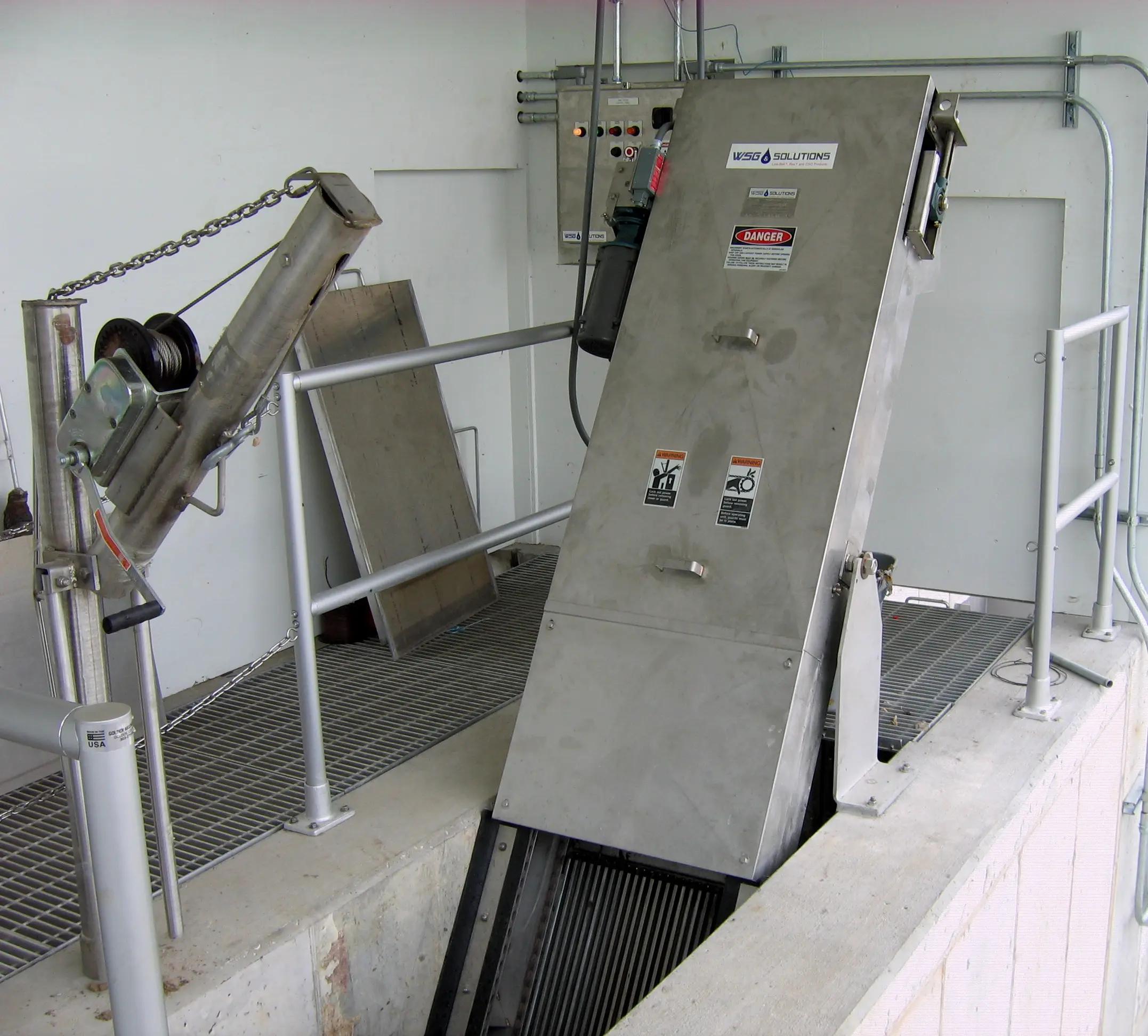

- All screens have both pivoted and fixed position capability
- Simple maintenance with easy to access components
Applications
- Low flow applications up to 5 MGD
- Bar rack widths from 9″ to 30″
- Spacing ¼” and larger
Markets
- Municipal wastewater
- Pulp & paper
- Food processing
Parts
WSG & Solutions, Inc., is your exclusive OEM source for genuine Envirex Products aftermarket parts and support. We stock multiple common REX® Series 1000 Bar Screen parts to ensure quick delivery and have the expertise and design records to provide rebuilds or retrofits to ensure the long-term operation of your screen.
Contact us for the following common REX® Series 1000 Bar Screen parts: screen chains, cleaning rakes, head & foot sprockets, take-up bearings, stub shaft assemblies, wiper blades, drive components & switches and ALL fabricated parts.
