REX® Heavy Duty/FR

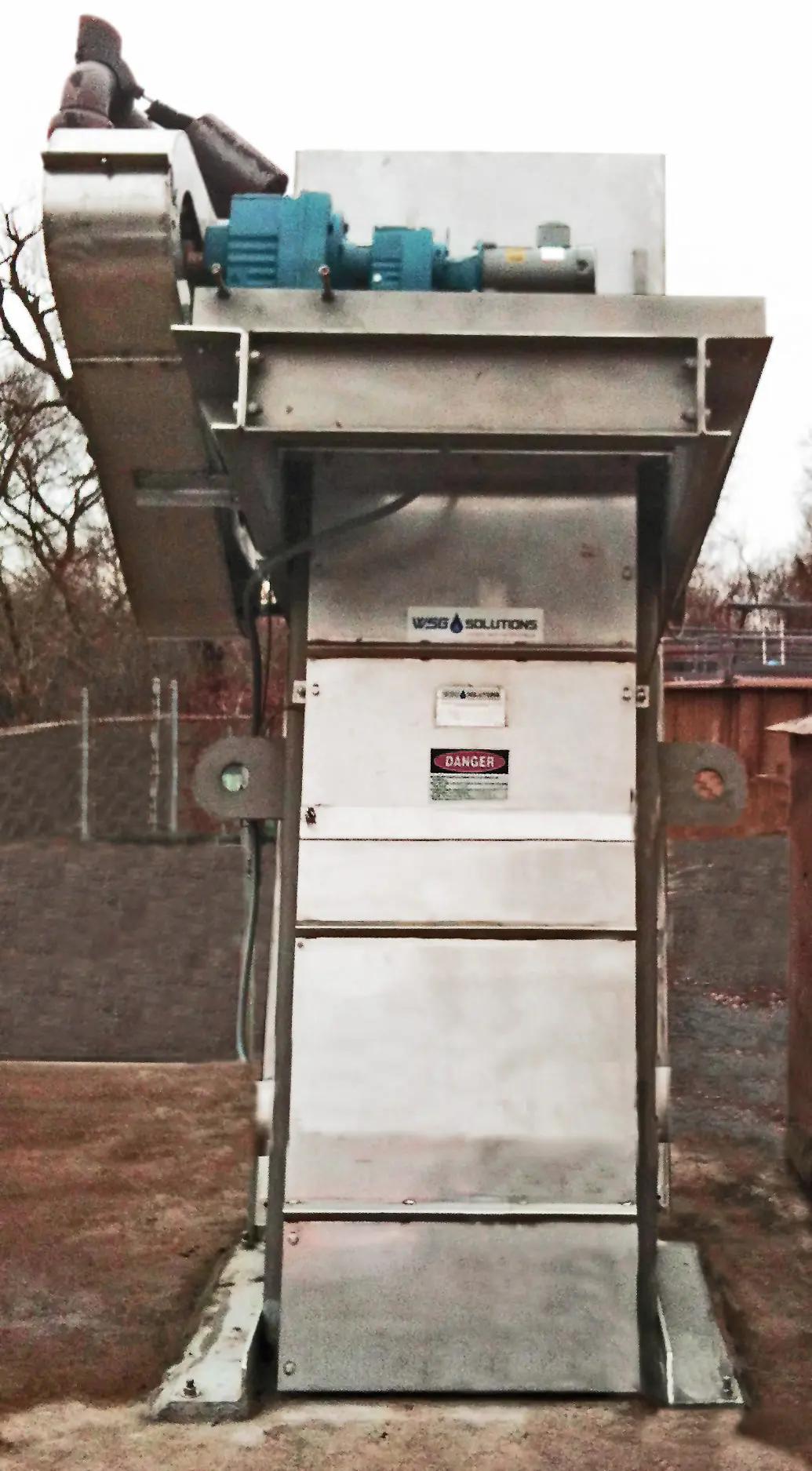

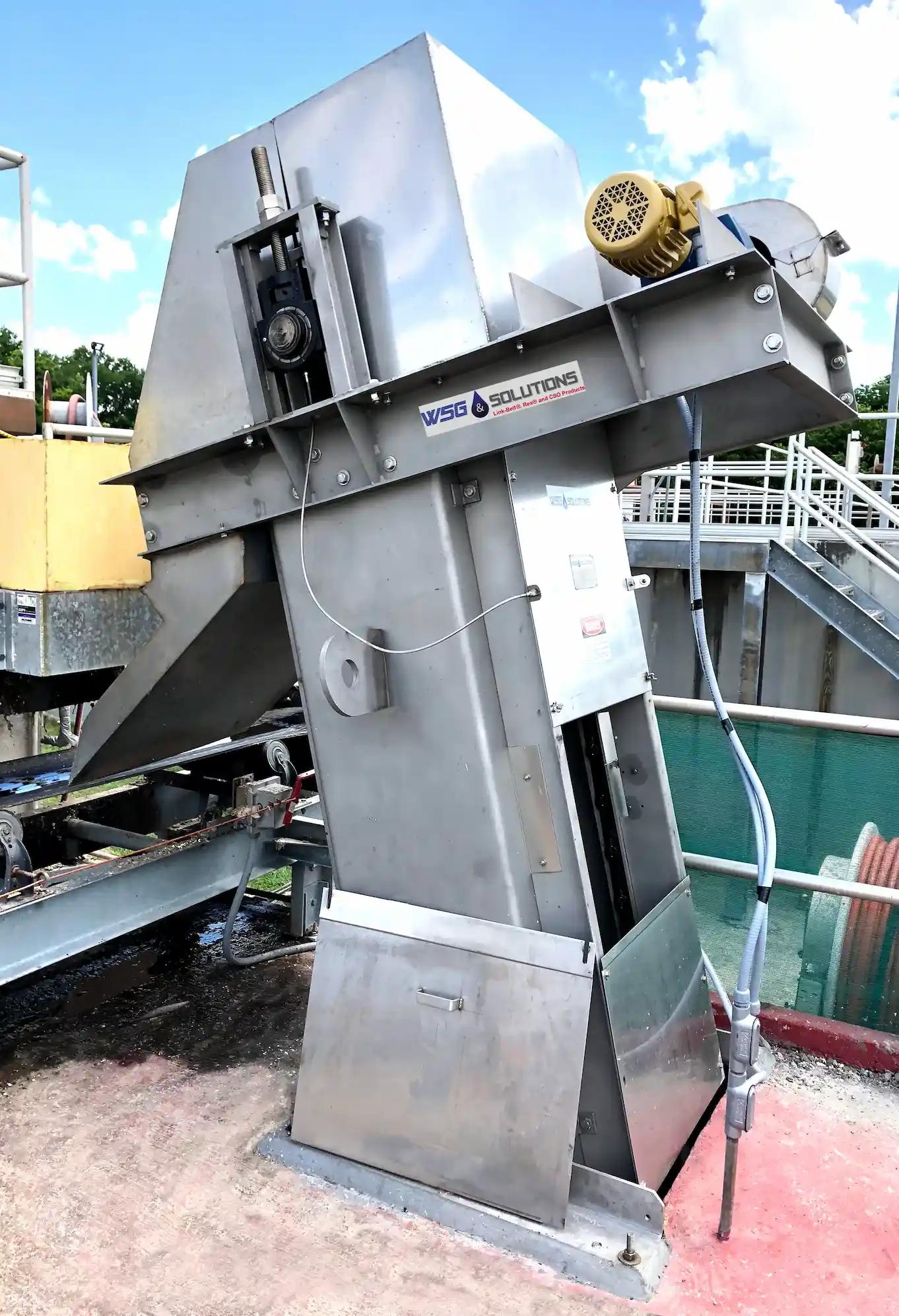

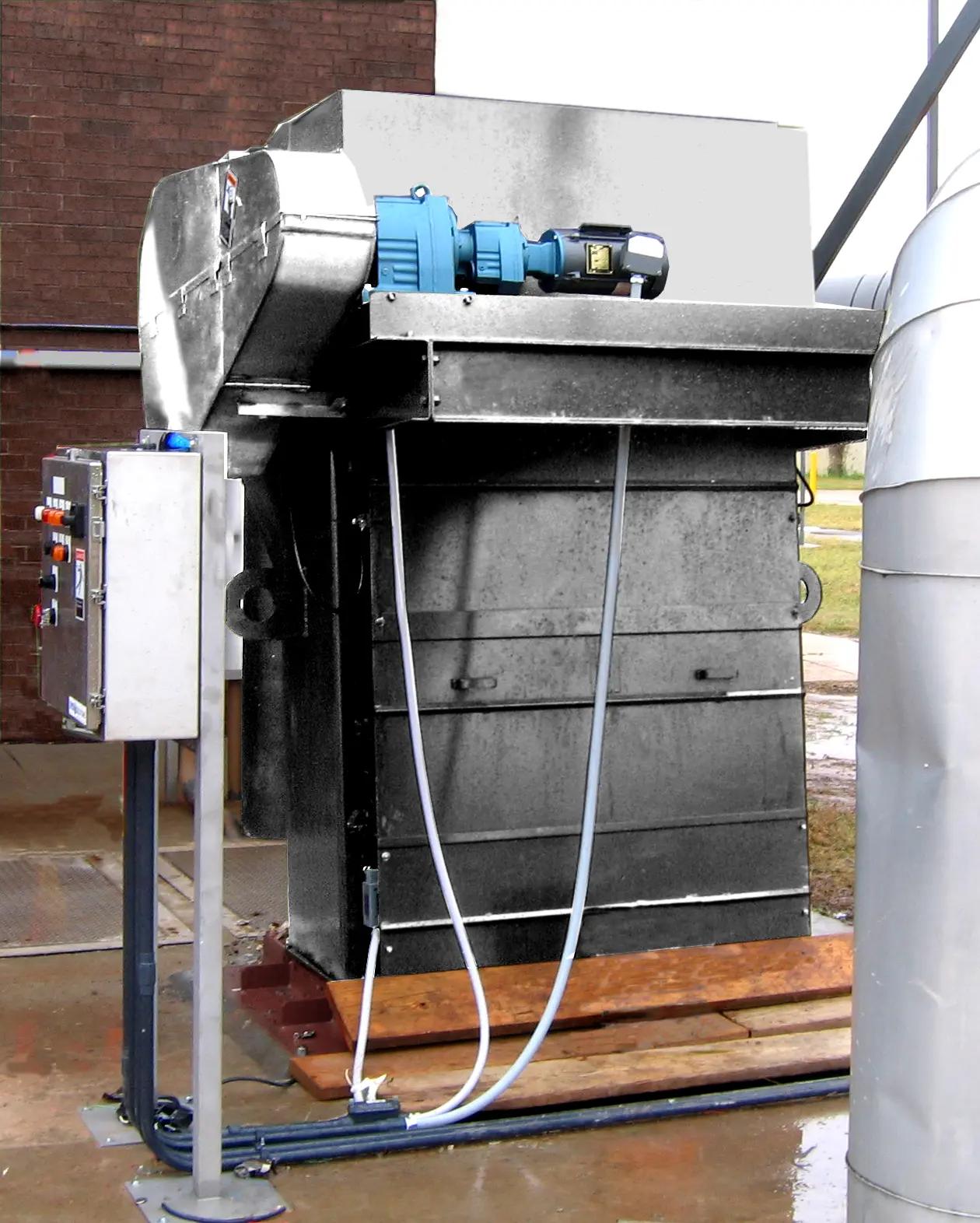

The REX® Heavy Duty/FR (Front Return) Bar Screen is a self-contained chain and rake type screen. The screen can be supplied with either a fixed mounting, or it can be designed to pivot out of the channel. The debris is captured by the bar rack and removed by multiple rakes from the upstream side of the screen.

The Heavy Duty/FR Bar Screen is designed to operate at regular 24-hour intervals. A start timer will initiate the cleaning cycle to remove the collected debris from the bar rack. The unit will cycle until two or more rakes have passed the stop limit switch at which time the unit will shut down until the off timer initiates another cycle. The off timer is adjustable to suit each application. The screen can be provided with standard chain or stainless-steel chain. Non-metallic chains can also be utilized depending on size and application.

A float switch or differential control can be provided to override the timer and initiate a cleaning cycle.

• Rugged construction suitable for variable flow conditions
• Construction material: carbon steel or stainless steel

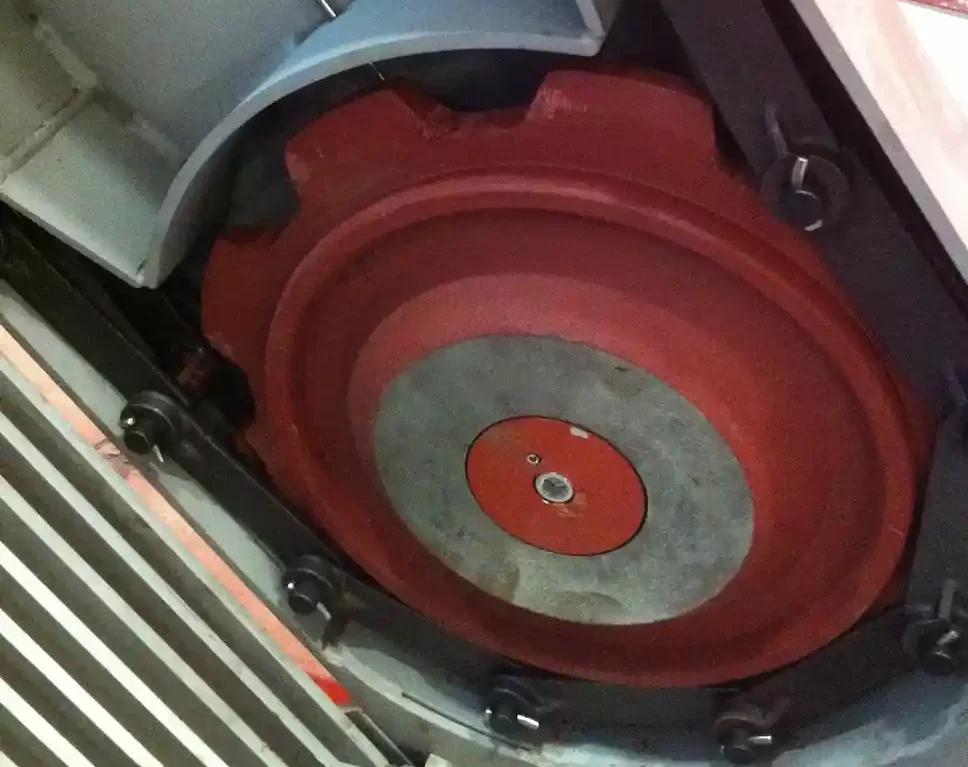

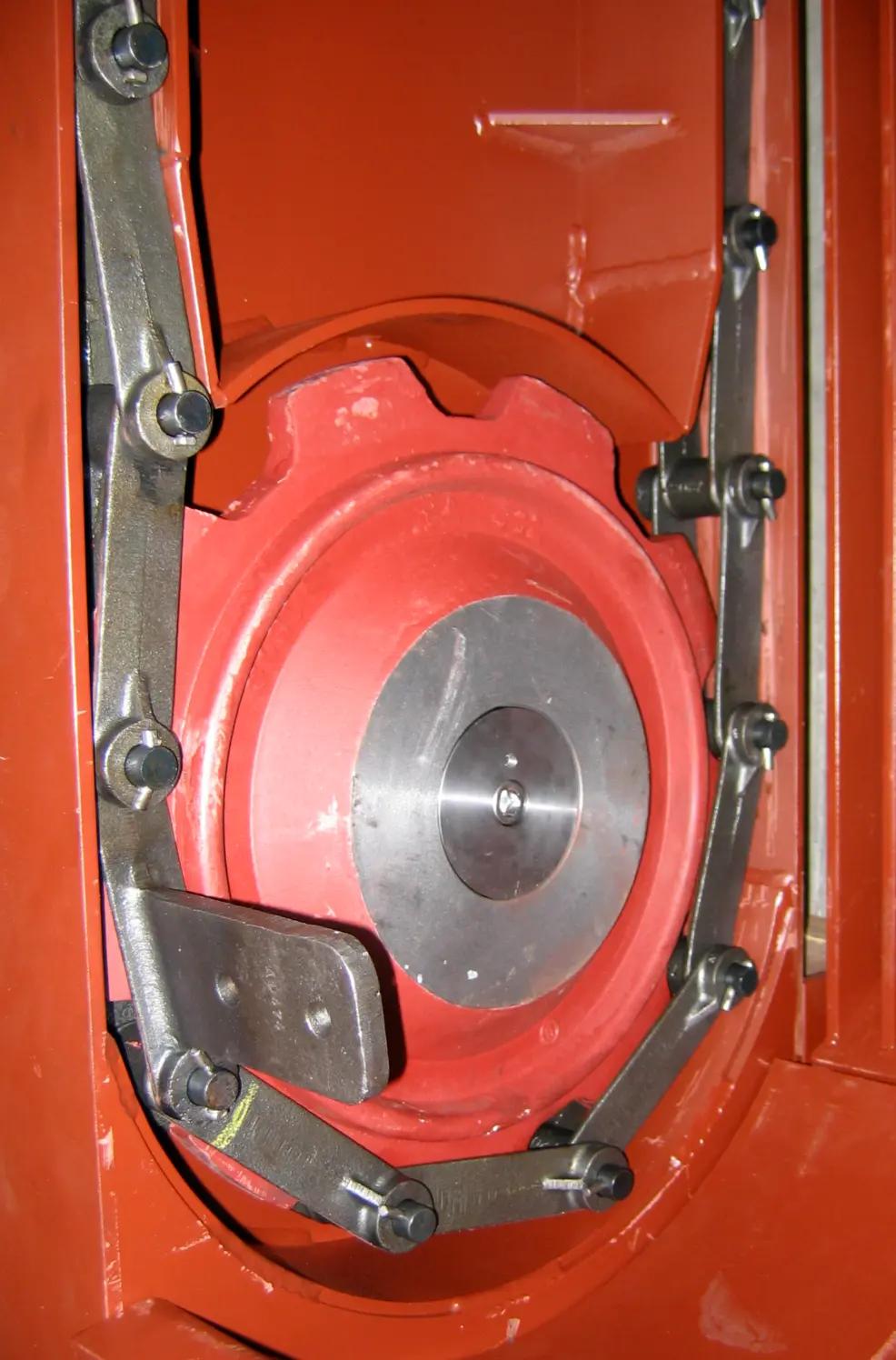

• Chain construction material: non-metallic, stainless steel or carbon steel

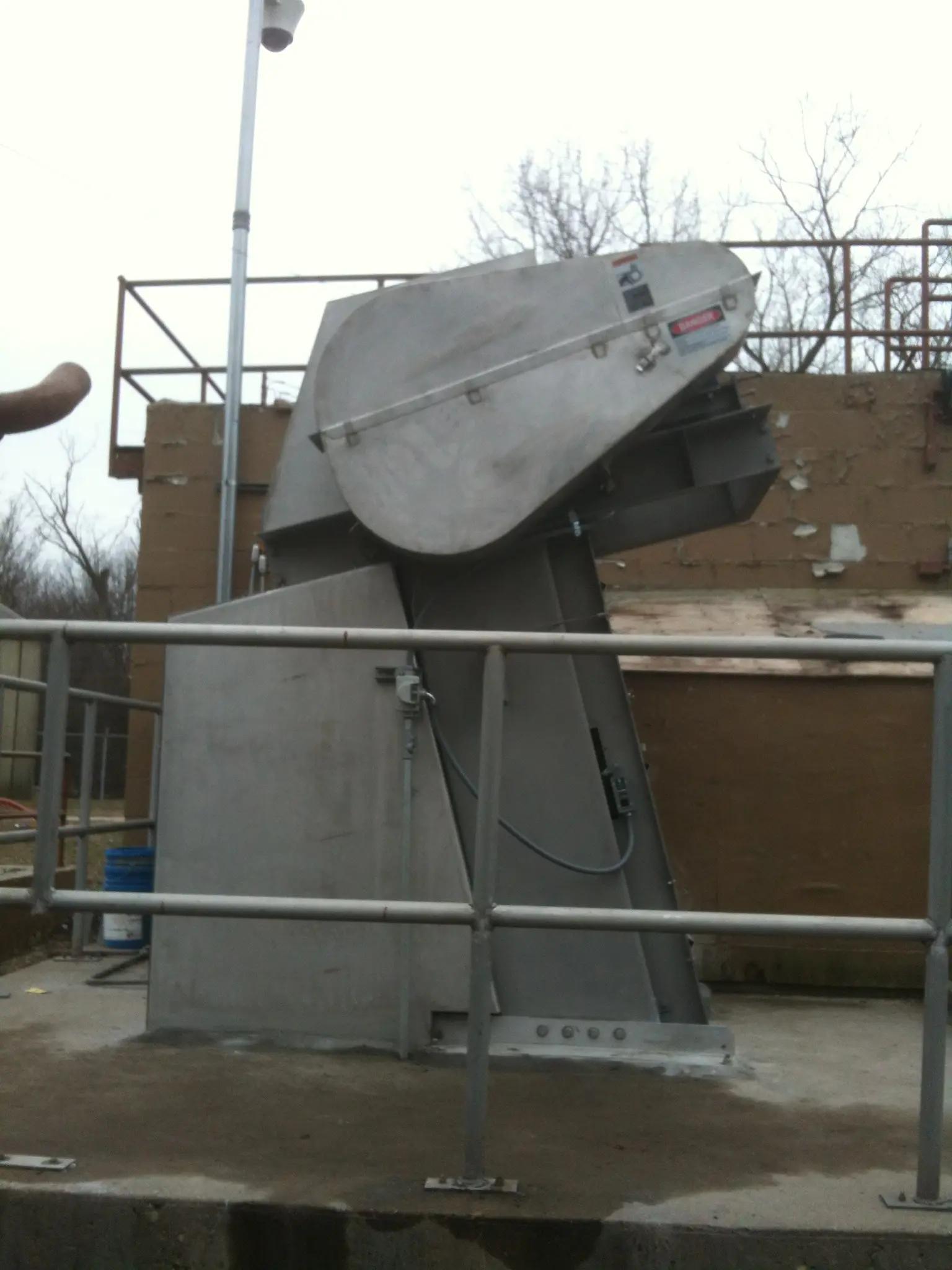

• Pivot design available

• Channel widths 1′-0″ to 10′-0″
• Maximum channel depth 45′-0″
• Minimum clear opening: ⅜”
• Screen angle – 75^o, 84^o, 90^o

• Municipal wastewater
• Pump stations
• Fresh water intake
• Pulp & paper
• Food & beverage
• Metal processing
